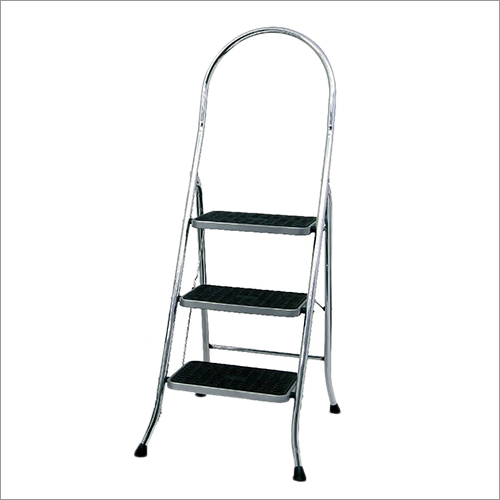

Lampe Chrome Stepstools Leaflet

Lampe Chrome Stepstools Leaflet
Lampe Chrome Stepstools Leaflet
Product Code : 04
Product Description

Lampe Chrome Stepstools Leaflet

we have the range from 3 step to 7 step in aluminium ladder, and in chrome steel we have 2 step and 3 step, description is attached for the same. Below is the description of the wheelbarrow.

Spet 2

Lampe item

CS-2 chrome

Youngman item number


Youngman EAN/Bar code


Number of steps

2

Standheight (top step)

466mm

Height handrail (safety bar)

362mm

Closed dimension

74 x 480 x 917

Base width including feet (B2)

480 mm

Base open position

480 x 520mm

Weight

5,50

Material, dimension and coating of frame

Steel tube  25 mm, 0.9 mm thickness chorme plated coating

Material, dimension and coating of step

Steel silver powder coated steps, with PP anti-skid cover. Steps with extra reinforce brace. Step dimension 260 x 378 mm, thickness 0.9 mm

Material, dimension and coating braces

steel rod  6 mm as step-to-step connection, step brace  8,5 mm and  12mm rear frame brace. All zinc plated.

Material specifications plastic parts

New TPR front frame feet with anti-skid sole with hardness Shore 80±10 and PPrear frame feet. PP step cover and PE step pipes between step and tube.
PE washers for all steelrod connections (no steel-to-steel-contact). Locking made from ABS

Locking system

New pull-to-unlock Lampe locking system in combination with new shape steel rod from top step to second step.

Frame connection

1-rivet joint between front and rear frame together with one part steelrod brace from step to rear frame.

Colours

Chrome frame, silver coated steps, zinc plated braces and black plastic parts.

Special remark for feet

Front feet with extra steel washer insert and feet connection extra secured with screw.

Production code

Small label with mmyy at backside of the top step (visual from outside shrink-wrap)

Printwork and packaging

SL0001/C: instruction label
PE shrinkwrapped wth PE recycle logo
2 pcs in bundle

Quantity HQ 40 ft. container


Testing standard

Made to standard for Stepstools EN-14183

Caspar B. Lampe

Lampe item number

CS-360 chrome

Youngman item number


Youngman EAN/Bar code


Number of steps

3

Standheight (top step)

705 mm

Height handrail (safety bar)

615 mm

Closed dimension

138 x 530 x 1410 mm

Base width including feet (B2)

Front and rear frame with smooth bended splayed base 530 mm wide

Bse open position

530 x 695 mm

Weight

7,80 kg

Material, dimension and coating of frame

Steel front-tube  25 mm, 0.9 mm thickness Chrome plated coating

Material, dimension and coating of step

Steel silver powder coated steps, with PP anti-skid cover. Steps with extra reinforce brace. Step dimension 260 x 378 mm, thickness 0.9 mm

Material, dimension and coating braces

steel rod  6 mm as step-to-step connection, step brace  8,5 mm and  12mm rear frame brace. All zinc plated.

Material specifications plastic parts

New TPR feet with anti-skid sole with hardness Shore 80±10. PP step cover and step pipes between step and tube.
PE washers for all steelrod connections (no steel-to-steel-contact). Locking made from ABS

Locking system

New pull-to-unlock Lampe locking system in combination with new shape steel rod from top step to second step.

Frame connection

1-rivet joint between front and rear frame together with one part steelrod brace from step to rear frame.

Colours

Chrome frame, silver coated steps, zinc plated braces and black plastic parts.

Special remark for feet

Feet with extra steel washer insert and feet connection extra secured with screw.

Quantity HQ 40 ft. container

1.600 pcs. handlaoded in bundels of 2 pcs. and each layer with carton protection

Printwork

SL0003: instruction label

Packing

Each PE shrink-wrapped and packed in banded in bundles of 2 pcs .

Testing standard

Made to standard for Stepstools EN-14183
